Adjustable Stainless Steel Solar Roof Hook

Adjustable Stainless Steel Solar Roof Hook

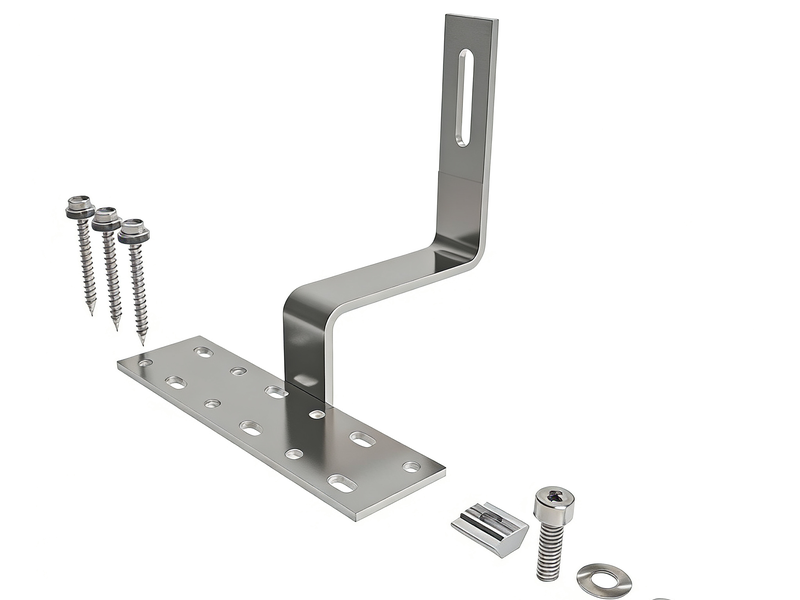

This stainless steel solar roof mounting hook is designed for secure PV module installation on tiled and sloped roofs. Made from durable stainless steel, its Z-shaped design with an elongated slot and pre-drilled base plate allows flexible adjustment for different tile profiles and roof battens. Supplied with stainless steel screws and mounting hardware, it enables easy installation without damaging roof tiles. Its corrosion-resistant surface withstands wind, rain, and UV exposure for over 25 years. Compatible with standard solar mounting rails, it is suitable for residential and commercial rooftop solar systems.

Product Features

·  High-strength stainless steel construction

·  Excellent corrosion and weather resistance

·  Durable for long-term outdoor use

·  Designed for Tiled or pitched roofs applications

·  Easy and quick installation

·  Secure and stable rail connection

·  Compatible with standard PV mounting rails

·  Suitable for residential and commercial solar projects



Product Specifications

Specification	Details
Material	Stainless Steel
Structure	Adjustable Z-Shaped
Installation	Pitched Tile Roof
Roof Angle	Flushed to Roof
Building Height	Below 20 m
Max Wind Load	42 m/s
Max Snow Load	0.5 kN/m²
Surface Treatment	Anodized
Fasteners	Stainless Steel
Warranty	12 Years
Service Life	25 Years
Rail Compatibility	Standard Solar Mounting Rails
Customization	OEM / ODM

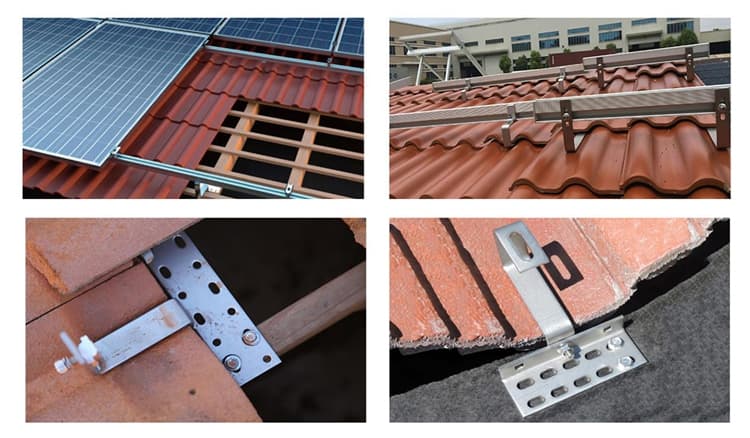

·  Locate the roof structure beneath the tile roof and identify a suitable fixing point.

·  Position the stainless steel roof hook beneath the roof tile.

·  Secure the hook to the roof structure through the pre-drilled mounting holes.

·  Adjust the hook position using the elongated slot and Z-shaped design to achieve proper rail alignment.

·  Attach the solar mounting rail to the roof hook and secure the connection.

·  Install the solar panels using compatible PV mid clamps and end clamps.

·  Tiled Roof Solar Mounting

·  Residential Solar

·  Commercial Rooftop PV

·  Pitched Roof Solar

·  Solar Rail Mounting

·  PV Mounting Accessories

· What is a solar roof mounting hook?

A stainless steel component used to connect solar mounting rails to pitched tile roofs and provide a secure mounting point for PV panels.

· What wind load can this solar roof hook withstand?

The product is designed for applications with a maximum wind speed of 42 m/s, subject to the specified installation conditions and project-specific structural requirements.

· Is this solar roof hook adjustable?

Yes. Its adjustable Z-shaped design and elongated mounting slot allow positioning adjustments for proper solar rail alignment.
