Pitched tile roof hooks are used to support the rail. They have adjustable and fixed type for your choices. Different type roof hook can meet different tile roofs. Varied roof hooks or brackets with tilt-in modules ensure easy and quick installation.
Заказ (минимальный объем) :
50Оплата :
T/TПроисхождение продукта :
ChinaВремя выполнения :
15

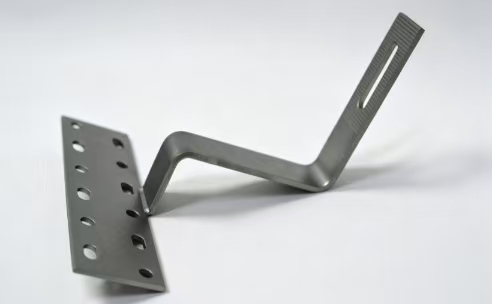

Height-Adjustable Top-Mount Tile Hook with Optional Flashing can be used for solar installation on sloped residential flat tile roof or curved (Spanish, S tile) tile roof with or without batten. The tile hooks are compatible with most common rails and made of 304 stainless steel. Optional flashing is made of aluminum sheet 3003 H14. The height is adjustable to accommodate different types of tile roof installed with or without batten.
Double flashing with optional flashing 200 lbs uplift with only 0.25" deflection Or 650 lbs uplift with only 0.25" deflection for heavy-duty tile hook Wider distance of bolt holes to avoid splitting rafter 6-mm-thick 30-mm-wide stainless steel top arm and 4-mm-thick stainless steel bottom plate Or 6-mm-thick 45-mm-wide stainless steel top arm and 6-mm-thick stainless steel bottom plate for heavy-duty tile hook Compatible with most common rails
